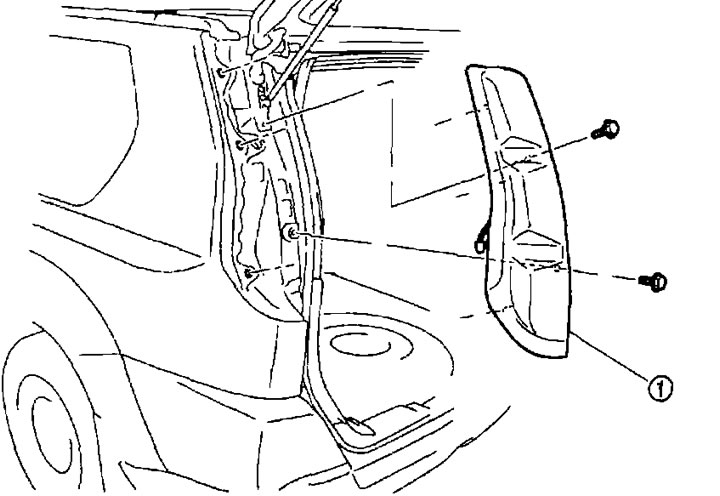

Removal. 1. Rear combination light

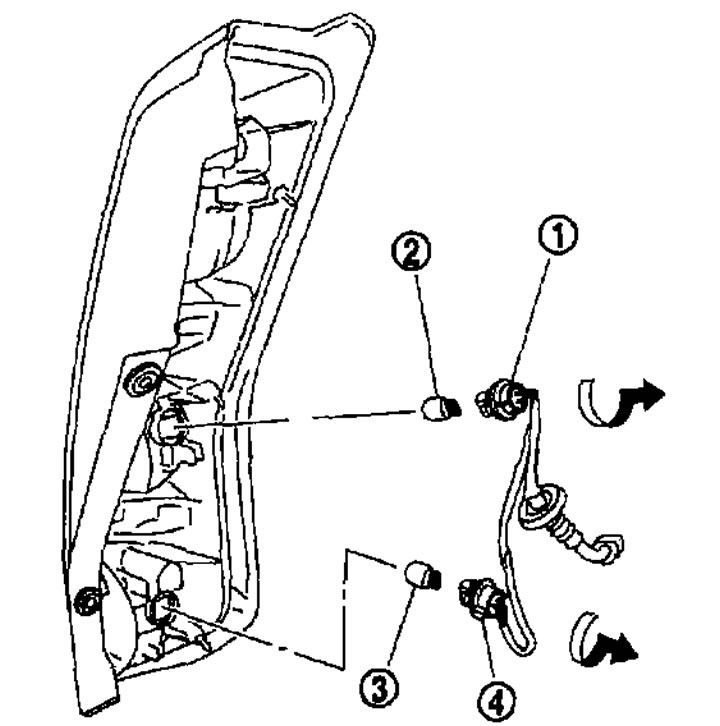

Disassembly. 1. Rear turn signal light bulb socket; 2. Rear turn signal light bulb; 3. Brake light/tail light bulb; 4. Brake light/tail light bulb socket.
Removal and installation
Caution: Disconnect the cable from the negative battery terminal or remove the power supply fuse.
Removal
1. Remove the rear pillar trim.
2. Disconnect the connector from the rear combination light.
3. Remove the rear combination light mounting bolts.
4. Pull the rear combination light towards the rear of the vehicle and remove the light.
Installation
Installation is carried out in the reverse order of removal.
Replacing light bulbs
Caution: Disconnect the cable from the negative battery terminal or remove the power supply circuit fuse.
Brake light/tail light bulb
1. Remove the rear combination light mounting bolts.
2. To gain access, pull the rear combination light towards the rear of the vehicle.
3. Turn the brake light/tail light bulb socket counterclockwise to unlock it.
4. Remove the light bulb from the socket.
Rear turn signal light bulb
1. Remove the rear combination light mounting bolts.
2. To gain access, pull the rear combination light towards the rear of the vehicle.
3. Turn the rear turn signal light bulb socket counterclockwise to unlock it.
4. Remove the light bulb from the socket.
