Diagnostics of malfunctions of the buzzer reminding about the ignition key not being removed and the external lighting not being switched off (Nissan Serena C24)

0

Table of contents: Component arrangement ↓ Electrical diagram ↓ Standard instrument cluster…↓ Horn ↓

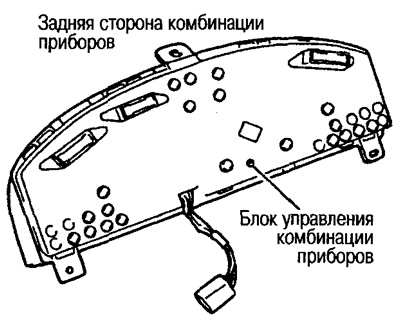

Component arrangement

Component arrangement

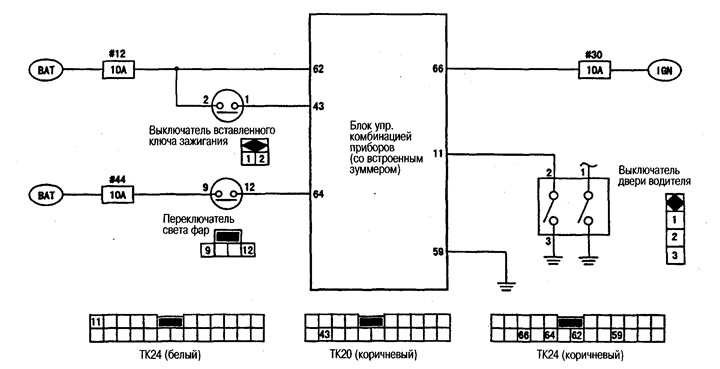

Electrical diagram

Electrical diagram

Standard instrument cluster input/output voltages

(The material is based on data from the portal: NissanBook)

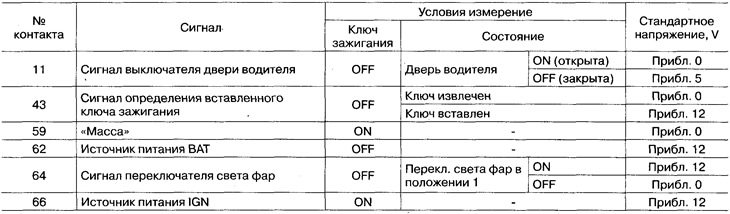

Standard instrument cluster input/output voltages

Standard instrument cluster input/output voltages

Horn

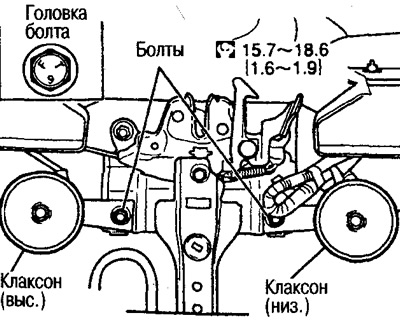

Note: When installing the horn, use FT bolts.

Note: When installing the horn, use FT bolts.
