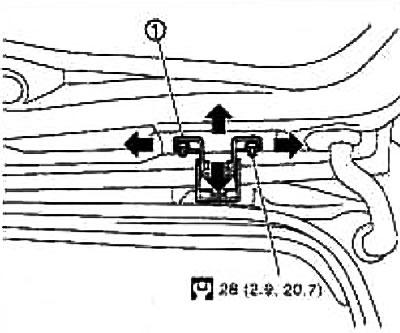

1. Rear door hinge

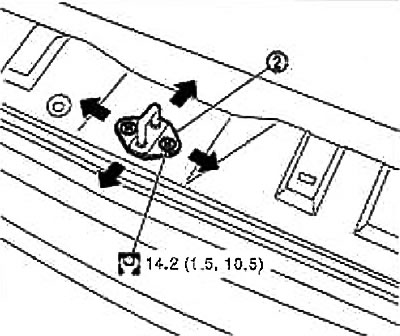

2. Tailgate latch hinge

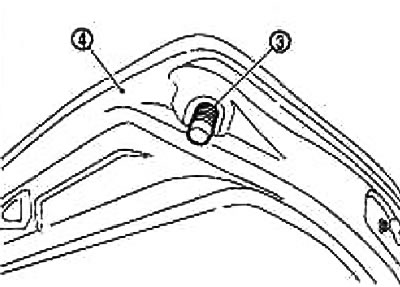

3. Rubber shock absorber
4. Rear door panel
Vertical/side clearance adjustment
1. Remove the rear luggage compartment trim. See section «Interior trim».
2. Loosen the rear door latch hinge screws.
3. Adjust by tapping the rear door latch hinge with a rubber mallet so that the clearance on the right and left and with the rear bumper is the same, then tighten the rear door latch hinge screws to the required torque.

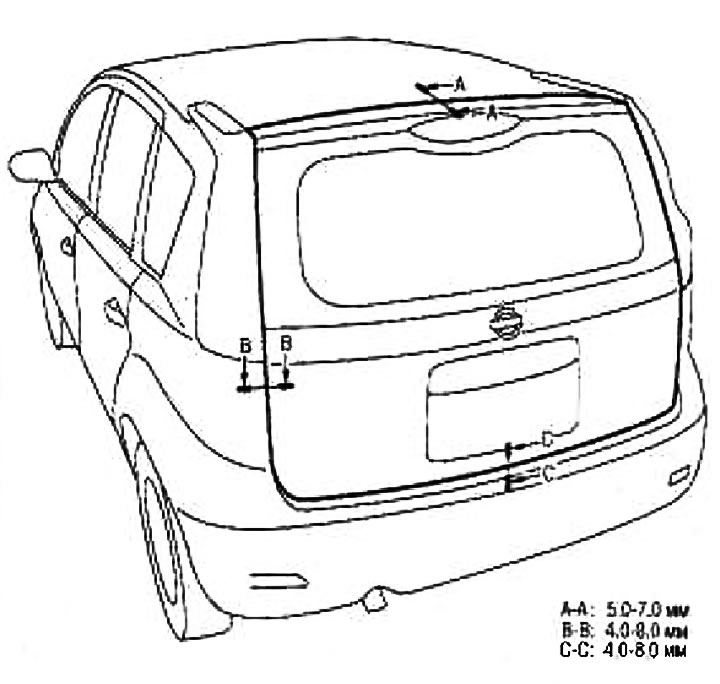

Attention: Adjust the gap between the tailgate and other components so that the difference in dimensions on the right/left is as follows: Rear door outer panel (IN) - body side panel (IN): 2.0 mm or less.
